To add the FastAce titanium fork kit, click here.

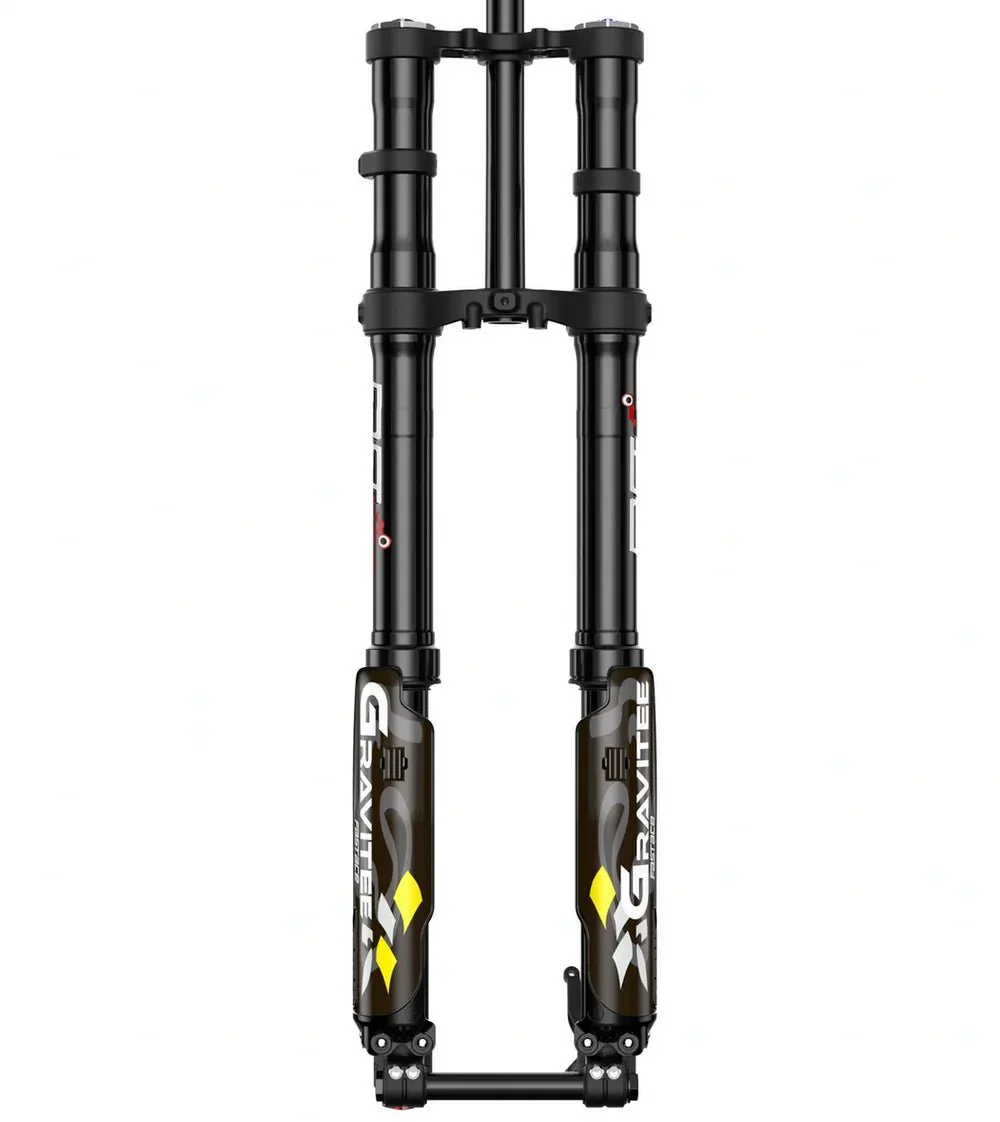

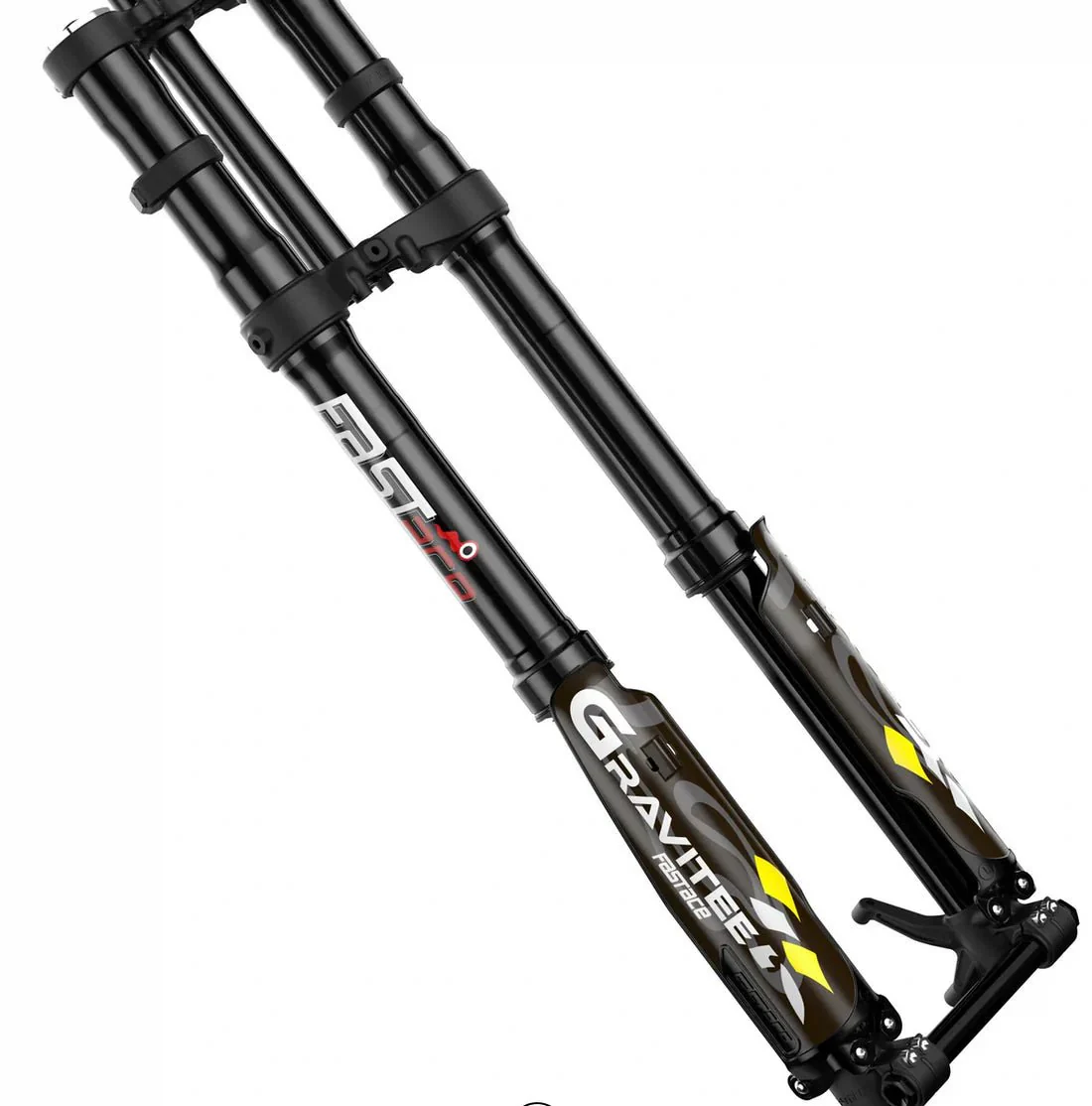

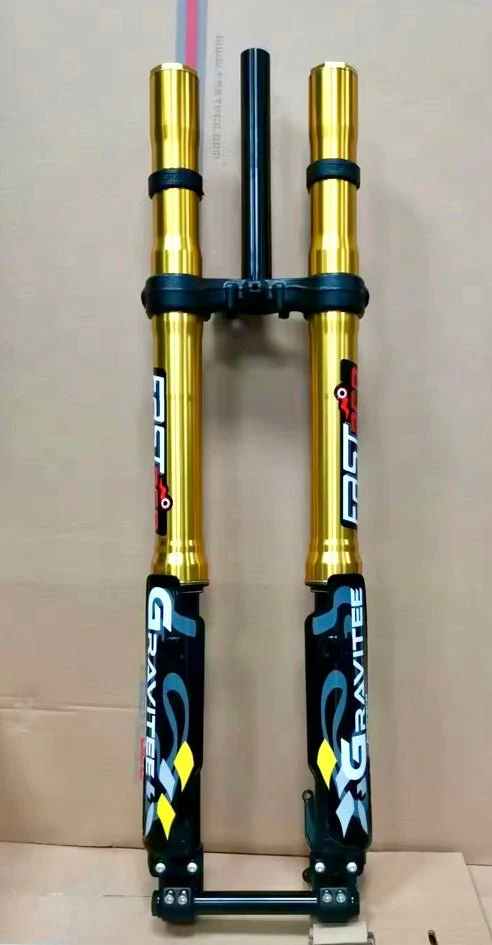

This is FastAce's newest fork for E-Moto (ALX12RV). Fits light e-motos like the Surron LBX, Talaria MX3, MX4, and XXX, E Ride Pro SS 2.0, Ventus, 79-Bike, and many other similar style bikes. Also referred to as the "Gravitee fork"; it's bigger and beefier than its predecessor. Has 18 clicks of both high and low-speed compression damping adjustment.



Fitment Bike:

• Talaria MX3 / MX4 / XXX

• SurRon LBX, LBS, L1E

• Segway X-260 / X-160
• E-Ride Pro S / SS 1.0/2.0
• Rawrr Mantis (requires new upper tapered bearing, sold separately)
• 79 Bike Falcon M
• Ventus One
• RFN Apollo
• Rerode R1

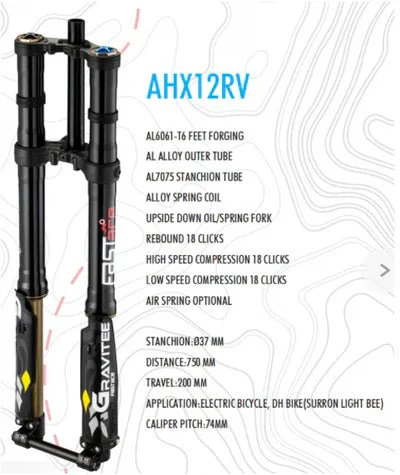

FEATURES:

• Legs Material: 2000 Series Aluminium
• Leg Diameter: 37mm
• Axle: 20*10*M14*P1.5*170L
• Steerer: 1-1/8" Straight
• Spring:  coil spring
• Adjustments: Rebound, HS and LS Compression
• 18 steps High Speed and 18 steps Low Speed Compression Damping
• 18 steps Rebound Damping
• Crown: Forged
• Brake Post Mount: 203mm (compatible with up to 223mm rotors)
• Max Tire Width: 67mm
• Ride Height: 22.9in
• Travel: 200mm



Weight Scale (Approximate):

• 38lbs-60lbs Progressive spring: 176lb-265lb rider weight (realistically 150-225lb)

• 60lbs: 220lb-265lb riders weight (realistically 190-225lb)
